09.5 - 1511 Rainbow Bend - XRF (Lead-Based Paint) Results Letter

Historic Landmark Commission – May 6, 2026

09.5 - 1511 Rainbow Bend - XRF (Lead-Based Paint) Results Letter — original pdf

Backup

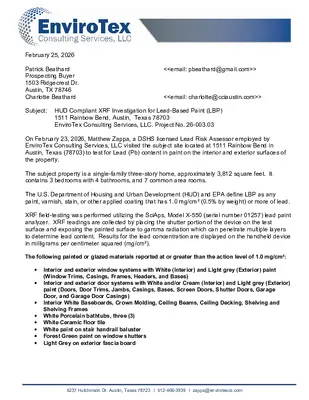

Thumbnail of the first page of the PDF — Page 1 of 27 pages

February 25, 2026 Patrick Beathard Prospecting Buyer 1503 Ridgecrest Dr. Austin, TX 78746 Charlotte Beathard <<email: pbeathard@gmail.com>> <<email: charlotte@cciaustin.com>> Subject: HUD Compliant XRF Investigation for Lead-Based Paint (LBP) 1511 Rainbow Bend, Austin, Texas 78703 EnviroTex Consulting Services, LLC. Project No. 26-003.03 On February 23, 2026, Matthew Zappa, a DSHS licensed Lead Risk Assessor employed by EnviroTex Consulting Services, LLC visited the subject site located at 1511 Rainbow Bend in Austin, Texas (78703) to test for Lead (Pb) content in paint on the interior and exterior surfaces of the property. The subject property is a single-family three-story home, approximately 3,812 square feet. It contains 3 bedrooms with 4 bathrooms, and 7 common area rooms. The U.S. Department of Housing and Urban Development (HUD) and EPA define LBP as any paint, varnish, stain, or other applied coating that has 1.0 mg/cm² (0.5% by weight) or more of lead. XRF field-testing was performed utilizing the SciAps, Model X-550 (serial number 01257) lead paint analyzer. XRF readings are collected by placing the shutter portion of the device on the test surface and exposing the painted surface to gamma radiation which can penetrate multiple layers to determine lead content. Results for the lead concentration are displayed on the handheld device in milligrams per centimeter squared (mg/cm²). The following painted or glazed materials reported at or greater than the action level of 1.0 mg/cm²: • • • Interior and exterior window systems with White (Interior) and Light grey (Exterior) paint (Window Trims, Casings, Frames, Headers, and Bases) Interior and exterior door systems with White and/or Cream (Interior) and Light grey (Exterior) paint (Doors, Door Trims, Jambs, Casings, Bases, Screen Doors, Shutter Doors, Garage Door, and Garage Door Casings) Interior White Baseboards, Crown Molding, Ceiling Beams, Ceiling Decking, Shelving and Shelving Frames • White Porcelain bathtubs, three (3) • White Ceramic floor tile • White paint on stair handrail baluster • Forest Green paint on window shutters • Light Grey on exterior fascia board 5237 Hutchinson Dr. Austin, Texas 78723 I 512-466-3939 I zappa@envirotexcs.com At the time of the investigation most of the painted surfaces observed and tested were in an intact condition. The following areas were found to be in a deteriorated state: • Ground floor storage room wood ceilings, walls, and door trim with cream paint • Garage area concrete walls, wood walls, and window frames with cream paint The sample descriptions and analysis results are detailed in the attached table. Samples positive for LBP are indicated in bold on the table. Sample locations can be referenced in the attached Lead Reference Drawings and general locations of identified LBP materials can be identified on the attached Lead Location Drawings. Samples collected serve as a representation of each specific homogeneous area of building material. EnviroTex recommends protective measures including Lead Safe work practices be taken to avoid exposure to LBP dust and debris during any renovation or abatement process. It is recommended that any identified deteriorated LBP materials be tightened and encapsulated by a licensed lead abatement contractor to prevent any exposure. The owner of the residence should advise all contractors of the type and location of LBP under the OSHA Hazard Communication (Right-to-Know) Standard (29 CFR 1910.1200). If you have any questions or need additional information, please call. Respectfully submitted, EnviroTex Consulting Services, LLC Matthew C. Zappa Lead Risk Assessor License No. 2071108 Attachments: Texas Department State Health Services Licenses Performance Characteristic Sheet XRF Lead Results Table Reference Drawings Lead Location Drawings Texas Department of State Health Services BEIT KNOWN THAT ENV IROTEX CONSULTING SERVICES LLC IS certified to perform as a Lead Firm in the State of Texas and is herebygoverned by the rights, privileges and responsibilities set forth in Texas Occupations Code, Chapter 1955 and Title 25, Texas Administrative Code, Chapter 295 relating to Texas Environmental Lead Reduction, as long as dhislicense IS not suspended or revoked. Ceråfcaåon Number: 2110714 Expiraåon Date: 11/08/2026 Control Number: 7605 er Shuf0fd, I'D, Affl-l, Commissioner of Ith (VoidAfter Expiraåon Date) VOID IF ALTERED AON-TRANSFERABLE SEE BACK SciAps, Inc. 7 Constitution Way Woburn, MA 01801 USA +1 339-927-9455 EIN: 45-5055500 Calibration Certificate Certificate number: 221118-X550Pb-01257 Date: November 18, 2022 Instrument model: X550Pb(Rh) Instrument serial number: 01257 This instrument was manufactured and calibrated according to SciAps Inc. manufacturing and calibration procedures. The calibration was verified and confirmed by analyzing various certified reference materials produced by Analytical Reference Materials International (ARMI), Rocky Mountain Reference Materials (RMRM), National Institute of Standards and Technology (NIST) and / or other certified reference materials. All used calibration materials are traceable and within their expiration date. This instrument conforms to the SciAps Inc. Quality Assurance standards. Instruments from the X - series (X-550, X-505, X-300, X-250, X-200, X-100 and X-50) do not require any user calibration, instruments from the Z - series (Z-300, Z-200 and Z-50) may require incidental drift correction. Standards for the drift correction are supplied with the instrument. Instructions on how and when to perform a drift correction are in the user manual which is supplied with the instrument. SciAps instruments do not require an annual re-calibration. However, end-user’s procedures may dictate a fixed schedule for calibration verification of the device per factory procedures. Dawn Belhustede Authorized Signatory www.sciaps.com SciAps X-550 PCS February 2022 Action Level: 1.0 mg/cm2 Performance Characteristic Sheet EFFECTIVE DATE: February 1, 2022 MANUFACTURER AND MODEL: Make: Models: X-Ray Source: Rhodium (Rh) or Gold (Au) Anode SciAps Model X-550 FIELD OPERATION GUIDANCE ACTION LEVEL SETTING: 1.0 mg/cm2 OPERATING PARAMETERS: Timed mode: fixed 10-second reading. Quick mode: variable-time reading (approximately 2-6 seconds). XRF CALIBRATION CHECK LIMITS: 0.8 to 1.2 mg/cm2 (inclusive) on NIST SRM 2579 (1.02 mg/cm2)/NIST SRM 2573, or equivalent SUBSTRATE CORRECTION: Not applicable INCONCLUSIVE RANGE OR THRESHOLD: Au Anode (quick) READING DESCRIPTION Results not corrected for substrate bias on any substrate SUBSTRATE THRESHOLD (mg/cm2) Brick Concrete Drywall Metal Plaster Wood 1.0 1.0 1.0 1.0 1.0 1.0 Rh Anode (Timed or Quick), Au Anode (Timed) SUBSTRATE THRESHOLD (mg/cm2) READING DESCRIPTION Results not corrected for substrate bias on any substrate Brick Concrete Drywall Metal Plaster Wood 0.9 0.9 0.9 0.9 0.9 0.9 Page 1 SciAps X-550 PCS February 2022 Action Level: 1.0 mg/cm2 BACKGROUND INFORMATION EVALUATION DATA SOURCE AND DATE: This sheet is supplemental information to be used in conjunction with Chapter 7 of the HUD Guidelines for the Evaluation and Control of Lead-Based Paint Hazards in Housing, 2012 Edition ("HUD Guidelines"). Performance parameters shown on this sheet are calculated using test results on building components in the HUD archive. Testing was conducted on 146 test samples in February 2022, with two separate instruments of each Anode type, operated in both Timed and Quick modes. OPERATING PARAMETERS Performance parameters shown in this sheet are applicable only when properly operating the instrument using the manufacturer's instructions and procedures described in Chapter 7 of the HUD Guidelines. XRF CALIBRATION CHECK: The calibration of the XRF instrument should be checked using the paint film nearest 1.0 mg/cm2 in the NIST Standard Reference Material (SRM) used (e.g., for NIST SRM 2579, use the 1.02 mg/cm2 film; for NIST SRM 2579a, use film 2573 (1.04 mg/cm2). If the average (rounded to 1 decimal place) of three readings is outside the acceptable calibration check range, follow the manufacturer's instructions to bring the instrument into control before XRF testing proceeds. EVALUATING THE QUALITY OF XRF TESTING: Randomly select ten testing combinations for retesting from each house or from two randomly selected units in multifamily housing. Conduct XRF re-testing at the ten testing combinations selected for retesting. Determine if the XRF testing in the units or house passed or failed the test by applying the steps below. Compute the Retest Tolerance Limit by the following steps: Determine XRF results for the original and retest XRF readings. In single-family and multi- family housing, a result is defined as a single reading. Therefore, there will be ten original and ten retest XRF results for each house or for the two selected units. Calculate the average of the original XRF result and the retest XRF result for each testing combination. Square the average for each testing combination. Add the ten squared averages together. Call this quantity C. Multiply the number C by 0.0072. Call this quantity D. Add the number 0.032 to D. Call this quantity E. Take the square root of E. Call this quantity F. Multiply F by 1.645. The result is the Retest Tolerance Limit. Compute the average of all ten original XRF readings. Compute the average of all ten re-test XRF readings. Find the absolute difference of the two averages. If the difference is less than the Retest Tolerance Limit, the inspection has passed the retest. If the difference of the overall averages equals or exceeds the Retest Tolerance Limit, this Page 2 SciAps X-550 PCS February 2022 Action Level: 1.0 mg/cm2 procedure should be repeated with ten new testing combinations. If the difference of the overall averages is equal to or greater than the Retest Tolerance Limit a second time, then the inspection should be considered deficient. Use of this procedure is estimated to produce a spurious result approximately 1% of the time. That is, results of this procedure will call for further examination when no examination is warranted in approximately 1 out of 100 dwelling units tested. TESTING TIMES: The reading time in Archive tests was 10 seconds in Timed mode and from 2-6 seconds in Quick mode, for both the Rh Anode and Au Anode. CLASSIFICATION OF RESULTS: XRF results for the Au Anode in Quick mode are classified as positive if they are greater than or equal to 1.0 mg/cm2 and negative if they are less than to 1.0 mg/cm2. XRF results for the Au Anode in Timed mode and for the Rh Anode in Timed or Quick mode are classified as positive if they are greater than or equal to 0.9 mg/cm2 and negative if they are less than to 0.9 mg/cm2 DOCUMENTATION: A report titled Methodology for XRF Performance Characteristic Sheets (EPA 747-R-95-008) provides an explanation of the statistical methodology used to develop Performance Characteristic Sheets at the Federal standard (Action Level) of 1.0 mg/cm2 and provides empirical results from using the recommended inconclusive ranges or thresholds for specific XRF instruments. The report may be downloaded at http://www2.epa.gov/lead/methodology-xrf-performance-characteristic-sheets-epa-747-r-95-008-september- 1997. Page 3 EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Date ______/______/______ 2 25 2026 XRF LEAD TEST LOG Investigated by Matthew C. Zappa Client 1511 Rainbow Bend, Austin, Texas 78703 Project Number _______________ 26-003.03 Sample # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 Room Substrate Component N/A N/A N/A N/A Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Studio Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom N/A N/A N/A N/A Drywall Drywall Wood Paneling Wood Paneling Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Pre Calibration Pre Calibration Pre Calibration Pre Calibration Ceiling Wall Wall Wall Wall Beam Baseboard Window Trim Window Casing Window Frame Door Jamb Door Trim Door Cabinet Frame Cabinet Door Shelf Frame Shelf Ceiling Wall Wall Wall Wall Crown Molding Baseboard Window Trim Window Casing Window Frame Screen Door Door Shutter Side N/A N/A N/A N/A Ceiling A B C D Ceiling C A A A D D D C C C C Ceiling A B C D D B B B B B B Color N/A N/A N/A N/A White White White White White White White White White White White White Cream White White White White White Beige Beige Beige Beige White White White White White White White Lead mg/cm² 1.1 1.1 1 1.1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.8 0 0 0 4.5 9.1 10 8.9 9.5 0.1 0 Condition Classification N/A N/A N/A N/A Deteriorated Deteriorated Deteriorated Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Deteriorated Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Positive Positive Positive Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Negative Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 Room Substrate Component Side Color Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Closet Primary Closet Primary Closet Primary Closet Primary Closet Primary Bedroom Primary Bedroom Primary Bedroom Primary Bedroom Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Primary Bath Sunroom Sunroom Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Wallpaper Wallpaper Wallpaper Wallpaper Wood Wood Ceramic Wood Wood Wood Wood Wood Wood Paneling Ceramic Wood Wood Porcelain Ceramic Wood Stone Door Trim Door Casing Door Base Door Frame Door Trim Door Jamb Door Door Trim Door Casing Door Shutter Shelf Shelf Mantle Mantle Casing Mantle Base Floor Ceiling Wall Wall Wall Wall Crown Molding Rub Rail Baseboard Window Casing Window Frame Door Trim Door Jamb Door Wainscot Wall Cabinet Frame Cabinet Door Bathtub Floor Ceiling Wall B B B B D D D C C C C C C C C Floor Ceiling A B C D D C D B B A A A A B C C C Floor Ceiling A White White White White White White White White White White White White White White White Varnish White Multi Multi Multi Multi White White White White White White White White White White White White White White White White Lead mg/cm² 9.5 0 2.3 0 >10 8.4 8 9 8.1 0 0.1 3.8 0 0.5 0 0 0 0 0 0 0.1 3.2 0 0 2.4 7.9 7.7 9.5 8.9 0 0 0.1 0 4.8 6.9 8.9 0 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Positive Negative Positive Negative Positive Positive Positive Positive Positive Negative Negative Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Negative Negative Positive Positive Positive Positive Positive Negative Negative Negative Negative Positive Positive Positive Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 Room Substrate Component Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Sunroom Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Great Room Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Ceramic Drywall Stone Wood Paneling Wood Paneling Wood Paneling Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Wallpaper Wallpaper Wallpaper Wallpaper Wall Wall Wall Crown Molding Door Casing Door Base Door Door Shutter Slider Door Door Trim Baseboard Shelf Frame Shelf Floor Ceiling Wall Wall Wall Wall Crown Molding Baseboard Window Trim Window Casing Windowsill Window Frame Window Shutter Door Jamb Door Base Door Door Casing Door Floor Ceiling Wall Wall Wall Wall Side B C D A A A A A B B B C C Floor Ceiling A B C D A A C C C C C B B B A A Floor Ceiling A B C D Color White White White White Cream Cream Cream Cream Cream White White White White Red Orange White White White White White Cream Cream White White White White White White Varnish White White White Varnish White Multi Multi Multi Multi Lead mg/cm² 0 0 0 7.6 2.6 3.8 2 0.1 0 0 6.9 0 0 0 0 0 0 0 0.2 0.2 0.3 0.2 0.1 0.2 0.2 0.4 9.5 0 0 5.8 5.5 0 0 0 0 0 0 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Negative Negative Negative Positive Positive Positive Positive Negative Negative Negative Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Negative Negative Positive Positive Negative Negative Negative Negative Negative Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 Room Substrate Component Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Storage Room 2 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Bedroom 1 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Hallway 2 Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Baseboard Shelf Base Shelf Frame Shelf Door Trim Door Jamb Door Ceiling Wall Wall Wall Wall Baseboard Window Trim Window Casing Window Frame Door Trim Door Casing Door Shutter Shelf Frame Shelf Frame Door Trim Door Casing Door Screen Door Floor Ceiling Wall Wall Wall Wall Baseboard Door Trim Door Casing Closet Shelf Closet Casing Closet Trim XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Deteriorated Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Positive Positive Positive Positive Positive Positive Positive Negative Negative Negative Positive Positive Positive Positive Positive Positive Positive Positive Positive Positive Color Cream Cream Cream Cream Cream Cream Cream White White White White White White White White White White White White White White White White White White Varnish White White White White White White White White Cream Cream Cream Lead mg/cm² 0 0 0 0 0 0 0 0 0 0 0 0 5.6 4.7 4.2 6 3.4 2 5.2 >10 9.4 5 6.3 6.8 0 0.1 0 3.4 2.4 2.9 3 3.6 2.6 2.6 5.2 >10 9.3 Side D B B B A A A Ceiling A B C D D A A A B B B B B D D D D Floor Ceiling A B C D C B B B B B EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 Room Substrate Component Hallway 2 Hallway 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Hall Bath 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bathroom 2 Bedroom 2 Wood Wood Drywall Drywall Ceramic Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Porcelain Ceramic Drywall Wallpaper Wallpaper Wallpaper Wallpaper Wood Wood Wood Wood Wood Wood Wood Wood Wood Ceramic Ceramic Porcelain Ceramic Drywall Closet Door Floor Ceiling Wall Wall Wall Wall Crown Molding Baseboard Wall Trim Window Trim Window Casing Window Frame Door Trim Door Jamb Door Bathtub Floor Ceiling Wall Wall Wall Wall Rub Rail Window Trim Window Casing Window Frame Door Trim Door Jamb Door Cabinet Frame Cabinet Door Wall Wall Bathtub Floor Ceiling Side B Floor Ceiling A B C D B C C D D D C C C Floor Floor Ceiling A B C D C D D D A A A C C A B Floor Floor Ceiling Color Cream Varnish White Mauve Tan Mauve Mauve White White White White White White White White White White Tan White Multi Multi Multi Multi White White White White White White White Multi Multi White Tan Cream Cream White Lead mg/cm² 8.1 0 0 0 0 0 0 0 0 0 >10 6.2 8 8.7 7.5 4.5 2 0 0 0 0 0 0 0 8 6.2 7 9.2 >10 >10 0 0 0 0 5.3 0 0 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Positive Positive Negative Negative Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Positive Negative Negative Negative Negative Positive Negative Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 Room Substrate Component Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Closet Bedroom 2 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Hallway 3 Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Wallpaper Wallpaper Wallpaper Wallpaper Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wallpaper Wallpaper Wallpaper Wallpaper Wood Wall Wall Wall Wall Crown Molding Baseboard Window Trim Window Casing Window Frame Window Shutter Door Trim Door Jamb Door Wall Baseboard Shelf Frame Shelf Door Trim Door Casing Door Floor Ceiling Wall Wall Wall Wall Crown Molding Handrail Baseboard Banister Handrail Handrail Baluster Floor Ceiling Wall Wall Wall Wall Side A B C D D A A A A A B B B B B B B B B B Floor Ceiling A B C D C B B Floor Floor Floor Ceiling A B C D Color Cream Cream Cream Cream White White White White White White White White White White White White White White White White Varnish White Tan Tan Tan Tan White White White Varnish White Varnish Cream Cream Cream Multi Cream Lead mg/cm² 0 0 0 0 4.8 9.8 8.8 >10 7.1 0 >10 9.3 >10 0 9.1 0 2.3 9.6 9.6 6.4 0 0 0 0 0 0 4.4 0 0.5 0 6.9 0 0 0.4 0 0.1 0 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Negative Negative Negative Negative Positive Positive Positive Positive Positive Negative Positive Positive Positive Negative Positive Negative Positive Positive Positive Positive Negative Negative Negative Negative Negative Negative Positive Negative Negative Negative Positive Negative Negative Negative Negative Negative Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 Room Substrate Component Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Storage Room 3 Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Dining Room Storage Room Storage Room Storage Room Storage Room Storage Room Storage Room Storage Room Storage Room Storage Room Storage Room Hallway 1 Hallway 1 Hallway 1 Hallway 1 Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Drywall Drywall Crown Molding Baseboard Door Trim Door Casing Door Shelf Frame Shelf Ceiling Wall Wall Wall Wall Crown Molding Window Trim Window Header Window Casing Window Frame Door Trim Door Casing Door Shutter Wainscot Baseboard Floor Ceiling Wall Wall Wall Wall Door Trim Door Casing Door Jamb Door Shutter Door Trim Ceiling Wall Wall Wall XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Deteriorated Intact Intact Intact Intact Positive Positive Positive Positive Positive Negative Negative Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Negative Positive Positive Negative Negative Negative Positive Positive Positive Positive Positive Positive Negative Negative Negative Negative Negative Negative Negative Negative Lead mg/cm² 3.2 3.3 4.4 8.3 >10 0 0 0 0.1 0 0.1 0.1 9 6.6 8.4 5.4 5.4 0.2 1.5 4.3 0 0 0 8.7 8.6 6.7 7.3 3.2 3.2 0 0.2 0 0 0 0 0 0 Side C A B B B D D Ceiling A B C D C A A A A B B B C C Floor Ceiling A B C D A A A A A Ceiling A B C Color White White White White White White White White Tan Tan Tan Tan White White White White White White White White White White Varnish Cream Cream Cream Cream Cream Cream Cream Cream Cream Cream White Tan Tan Tan EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 Room Substrate Component Side Color Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Hallway 1 Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Living Room Hall Bath 1 Hall Bath 1 Hall Bath 1 Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Drywall Wallpaper Wallpaper Wall Crown Molding Baseboard Door Trim Door Casing Door Stair Handrail Stair Handrail Stair Baluster Stair Tread Floor Ceiling Decking Wall Wall Wall Wall Baseboard Window Trim Window Casing Window Frame Door Trim Door Casing Door Trim Door Casing Door Base Door Screen Door Beam Shelf Frame Shelf Cabinet Frame Cabinet Shelf Cabinet Door Floor Ceiling Wall Wall D B A A A A D Floor Floor Floor Floor Ceiling A B C D B B B B D D A A A A A Ceiling C C C C C Floor Ceiling A B Tan White White White Cream White White Varnish White Varnish Varnish White Tan Tan Tan Tan White White White White White White White White White White White White White White White White White Varnish White Multi Multi Lead mg/cm² 0 5.4 7.9 8.3 5.7 0.3 0 0 >10 0 0 8.7 0 0 9.8 0 8 8.7 7.8 7.7 9.6 9.5 8.8 1.8 3.1 0 3 7.9 7.8 7.6 7.5 7.6 9 0 0 0 0 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Negative Positive Positive Positive Positive Negative Negative Negative Positive Negative Negative Positive Negative Negative Positive Negative Positive Positive Positive Positive Positive Positive Positive Positive Positive Negative Positive Positive Positive Positive Positive Positive Positive Negative Negative Negative Negative EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 Room Substrate Component Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Hall Bath 1 Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Garage Garage Garage Wallpaper Wood Wood Wood Wood Wood Wood Wood Wood Wood Ceramic Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Wood Wood Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Wall Crown Molding Baseboard Door Trim Door Casing Door Door Trim Door Cabinet Frame Cabinet Door Floor Ceiling Wall Wall Wall Wall Baseboard Door Trim Door Casing Door Cabinet Frame Cabinet Door Handrail Ceiling Wall Baseboard Window Casing Wall Door Trim Door Jamb Door Cabinet Frame Cabinet Door Beam Ceiling Wall Wall Side D C B A A A B B D D Floor Ceiling A B C D D A A A B B D Ceiling A A A D D D D D D Ceiling Ceiling A B Color Multi White White White White White White White Cream Cream Tan White White White White White White White White White Grey Grey White White White White White White White White White Grey Grey White Tan Cream Cream XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Deteriorated Intact Intact Negative Negative Negative Positive Positive Negative Positive Positive Negative Negative Negative Negative Negative Negative Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Lead mg/cm² 0 0.4 0 3.2 3.5 0 3.6 >10 0 0 0 0 0 0 8 0 0 0 0.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 0 0 0 EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 Room Garage Garage Garage Garage Garage Garage Garage Garage Garage Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Substrate Component Side Color Concrete Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Metal Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Metal Metal Wood Wood Wood Wall Wall Window Trim Window Frame Door Trim Door Jamb Door Shelf Frame Shelf Door Casing Door Base Door Window Trim Window Casing Window Base Window Frame Door Shutter Decking Decking Beam Handrail Window Shutter Wall Siding Wall Trim Soffit Fascia Window Trim Window Casing Window Base Window Frame Stair Handrail Screen Door Screen Frame Gutter Gutter Downspout Garage Door Casing Garage Header Garage Door Casing C D C C A A A A A A A A A A A A A A A A B B B B B C C C C C D D D D D D D Cream Cream Cream Cream Cream Cream Varnish Cream Cream Cream Cream Cream Cream Cream Cream Cream Forest Green Cream Cream Cream Forest Green Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Forest Green Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey XRF LEAD TEST LOG Condition Classification Deteriorated Deteriorated Deteriorated Deteriorated Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Positive Positive Negative Positive Positive Positive Negative Negative Negative Positive Positive Negative Positive Positive Negative Negative Negative Positive Positive Negative Positive Negative Negative Negative Positive Positive Positive Positive Positive Negative Negative Negative Negative Negative Positive Positive Positive Lead mg/cm² 4.3 3 0 6.7 5.3 >10 0 0 0 2.6 2.3 0.5 2.2 3.5 0 0.6 0 2.4 2.9 0.2 1.6 0 0 0 1.7 5.1 6.4 5 6.4 0 0 0 0 0 3.5 5.2 4.8 EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 367 368 369 370 371 372 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 Room Substrate Component Exterior Exterior N/A N/A N/A N/A Hall Bath 1 Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Kitchen Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Lounge Garage Garage Garage Garage Garage Garage Garage Wood Wood N/A N/A N/A N/A Ceramic Drywall Drywall Drywall Drywall Drywall Wood Wood Wood Wood Wood Wood Wood Drywall Drywall Wood Wood Drywall Wood Wood Wood Wood Wood Wood Wood Wood Wood Concrete Wood Wood Wood Wall Siding Wall Trim Post Calibration Post Calibration Post Calibration Post Calibration Floor Ceiling Wall Wall Wall Wall Baseboard Door Trim Door Casing Door Cabinet Frame Cabinet Door Handrail Ceiling Wall Baseboard Window Casing Wall Door Trim Door Jamb Door Cabinet Frame Cabinet Door Beam Ceiling Wall Wall Wall Wall Window Trim Window Frame Side D D N/A N/A N/A N/A Floor Ceiling A B C D D A A A B B D Ceiling A A A D D D D D D Ceiling Ceiling A B C D C C Color Light Grey Light Grey N/A N/A N/A N/A Tan White White White White White White White White White Grey Grey White White White White White White White White White Grey Grey White Tan Cream Cream Cream Cream Cream Cream Lead mg/cm² 2.7 5.1 1 1 1 1 0 0 0 0 8 0 0 0 0.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.1 0 0 0 4.3 3 0 6.7 XRF LEAD TEST LOG Condition Classification Intact Intact N/A N/A N/A N/A Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Deteriorated Intact Intact Deteriorated Deteriorated Deteriorated Deteriorated Positive Positive Positive Positive Positive Positive Negative Negative Negative Negative Positive Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Negative Positive Positive Negative Positive EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 Sample # 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 Room Garage Garage Garage Garage Garage Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior Exterior N/A N/A Substrate Component Side Color Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Metal Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Wood Metal Metal Wood Wood Wood Wood Wood N/A N/A Door Trim Door Jamb Door Shelf Frame Shelf Door Casing Door Base Door Window Trim Window Casing Window Base Window Frame Door Shutter Decking Decking Beam Handrail Window Shutter Wall Siding Wall Trim Soffit Fascia Window Trim Window Casing Window Base Window Frame Stair Handrail Screen Door Screen Frame Gutter Gutter Downspout Garage Door Casing Garage Header Garage Door Casing Wall Siding Wall Trim Post Calibration Post Calibration A A A A A A A A A A A A A A A A B B B B B C C C C C D D D D D D D D D N/A N/A Cream Cream Varnish Cream Cream Cream Cream Cream Cream Cream Cream Cream Forest Green Cream Cream Cream Forest Green Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Forest Green Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey Light Grey N/A N/A Lead mg/cm² 5.3 >10 0 0 0 2.6 2.3 0.5 2.2 3.5 0 0.6 0 2.4 2.9 0.2 1.6 0 0 0 1.7 5.1 6.4 5 6.4 0 0 0 0 0 3.5 5.2 4.8 2.7 5.1 1 1 XRF LEAD TEST LOG Condition Classification Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact Intact N/A N/A Positive Positive Negative Negative Negative Positive Positive Negative Positive Positive Negative Negative Negative Positive Positive Negative Positive Negative Negative Negative Positive Positive Positive Positive Positive Negative Negative Negative Negative Negative Positive Positive Positive Positive Positive Positive Positive EnviroTex Consulting Services, LLC 5237 Hutchinson Dr. Austin, Texas 78723 (512) 466-3939 XRF LEAD TEST LOG Sample # 371 372 Room N/A N/A Substrate Component N/A N/A Post Calibration Post Calibration Side N/A N/A Color N/A N/A Lead mg/cm² 1 1 Condition Classification N/A N/A Positive Positive NR – Not Regulated N/A – Not Applicable LOUNGEHALLWAY 1HALL BATH 1STORAGEROOM 15237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736February 24, 202626-010.02Lead Reference Drawing 1511 Rainbow BendAustin, TX 78703Ground FloorABCDSTORAGEROOM 2STORAGEROOM 2HALLWAY 3HALLWAY 2HALL BATH2BATH 2BEDROOM2BEDROOM1HALLWAY 3PRIMARYBATHSUN ROOMGREAT ROOM5237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736February 24, 202626-010.02Lead Reference Drawing 1511 Rainbow BendAustin, TX 787032nd FloorABCD5237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736Lead Reference Drawing 1511 Rainbow BendAustin, TX 787033rd FloorFebruary 24, 202626-010.02ABCDLOUNGEHALLWAY 1HALL BATH 1STORAGEROOM 15237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736February 24, 202626-010.02Lead Location Drawing 1511 Rainbow BendAustin, TX 78703Ground Floor- Interior (White paint) and Exterior (Light Grey paint) on wood Window Systems - Light Grey paint on wood Exterior Door Systems - White and/or cream paint on wood (Interior Baseboards, Crown Molding, CeilingBeams, Ceiling Decking, Shelving, Shelving Frames, Garage Walls and Window Frames-White paint on wood Stair Handrail Balusters-Forest Green paint on wood Window Shutters-Light Grey paint on Exterior Fascia BoardSTORAGEROOM 2STORAGEROOM HALLWAY 3HALLWAY 2HALL BATH2BATH 2BEDROOM2BEDROOM1HALLWAY 3PRIMARYBATHSUN ROOMGREAT ROOM35237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736February 24, 202626-010.02Lead Location Drawing 1511 Rainbow BendAustin, TX 787032nd Floor- Interior (White paint) and Exterior (Light Grey paint) on wood Window Systems- Light Grey paint on wood Exterior Door Systems - White and/or cream paint on wood (Interior Baseboards, Crown Molding, Ceiling Beams, Ceiling Decking, Shelving, Shelving Frames, Garage Walls and Window Frames- White paint on wood Stair Handrail Balusters- White Porcelain bathtubs- White Ceramic floor tile- Light Grey paint on Exterior Fascia Board5237 Hutchinson Dr.Austin, TX 78723(512) 466-3939www.envirotexcs.comTexas DSHS Asbestos Consulting Agency License Number: 100582Texas DSHS Lead Firm License Number: 2110714DATE:_________________________PROJECT NUMBER:_____________SIGNED:_______________________Matthew C. ZappaTexas DSHS License Number: 105736Lead Location Drawing 1511 Rainbow BendAustin, TX 787033rd FloorFebruary 24, 202626-010.02- Interior (White paint) and Exterior (Light Grey paint) on wood Window Systems - Light Grey paint on Exterior fascia board
