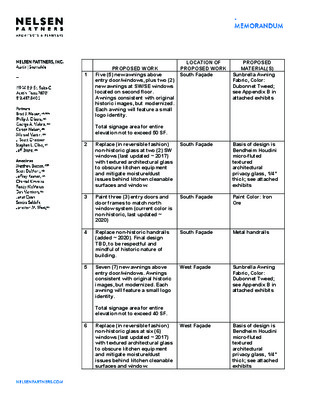

Thumbnail of the first page of the PDF — Page 1 of 40 pages

LOCATION OF PROPOSED WORK South Façade PROPOSED MATERIAL(S) Sunbrella Awning Fabric, Color: Dubonnet Tweed; see Appendix B in attached exhibits 1 PROPOSED WORK Five (5) new awnings above entry door/windows, plus two (2) new awnings at SW/SE windows located on second floor. Awnings consistent with original historic images, but modernized. Each awning will feature a small logo identity. Total signage area for entire elevation not to exceed 50 SF. 2 Replace (in reversible fashion) South Façade non-historic glass at two (2) SW windows (last updated ~ 2017) with textured architectural glass to obscure kitchen equipment and mitigate moisture/dust issues behind kitchen cleanable surfaces and window. 3 Paint three (3) entry doors and door frames to match north window system (current color is non-historic, last updated ~ 2020) 4 Replace non-historic handrails (added ~ 2020). Final design TBD, to be respectful and mindful of historic nature of building. 5 Seven (7) new awnings above entry door/windows. Awnings consistent with original historic images, but modernized. Each awning will feature a small logo identity. Total signage area for entire elevation not to exceed 40 SF. 6 Replace (in reversible fashion) non-historic glass at six (6) windows (last updated ~ 2017) with textured architectural glass to obscure kitchen equipment and mitigate moisture/dust issues behind kitchen cleanable surfaces and window. Basis of design is Bendheim Houdini micro-fluted textured architectural privacy glass, 1/4" thick; see attached exhibits Paint Color: Iron Ore South Façade South Façade Metal handrails West Façade Sunbrella Awning Fabric, Color: Dubonnet Tweed; see Appendix B in attached exhibits West Façade Basis of design is Bendheim Houdini micro-fluted textured architectural privacy glass, 1/4" thick; see attached exhibits North Façade Metal sign; see Appendix B in attached exhibits 7 One (1) new sign to be mounted above glazing. Sign to be mounted in such a manner that will not affect the integrity of the exterior facade (attaching into mortar joints). Total signage area for entire elevation not to exceed 40 SF. 8 Add two (2) new pairs of doors North Façade required for accessibility and egress, designed to fit within mullion system and architectural details. Steel and glass doors; see attached exhibits Page 2 of 2 LOCATION OF PROPOSED WORK South Façade PROPOSED MATERIAL(S) Metal sign; see Appendix B in attached exhibits South Façade Metal sign; see Appendix B in attached exhibits West Façade Basis of design is Architectural Louvers VK2S; see attached exhibits PROPOSED WORK 1 One (1) new sign located between the centermost columns. Sign to be mounted in such a manner that will not affect the integrity of the exterior facade (attaching into mortar joints). Total signage area for entire elevation not to exceed 50 SF. 2 One (1) new freestanding sign located away from building in landscaped area at corner of 6th / Lavaca. Sign size and type consistent with others in immediate vicinity and located throughout historic district. Total signage area for entire elevation not to exceed 50 SF. 3 Add new rooftop screening for mechanical equipment. Height of screening to extend 5’ above parapet - lowered by 2’ per ARC feedback (was originally shown at 7’). Screening to be made of extruded aluminum louvered slats, painted to match building exterior or closely related shade. - 210 W. SIXTH STREET FOR FRC Historic Exhibits for HLC Austin, Texas 5 2 0 2 , 7 R E B M E V O N . M O C S R E N T R A P N E S L E N Travel distance from accessible parking to accessible entrance = ± 215 ft Modify existing window system as required to provide accessible entry Travel distance from front of building to accessible entrance = ± 215 ft Accessible Parking in Garage Below (entry off Colorado Street) 7TH STREET T E E R T S A C A V A L T E E R T S A C A V A L DN D D O W C O W C W C I I W C 1424 H C 2436 C H D C H H C 1 4 5 4 1 4 5 4 C C D 0 6 4 2 P K H T 2 4 G L A S S W A S H E R P E R LI C K D H D 1 CF SPACE FOR PUMP REQUIRED. REFER TO INSTALLATION MANUAL. C H CWO CWI C D D C D D D D G G G G E G N A R E D A J P 1 6 0 0 T J DGC G G G G G G D C G D C E G N A R E D A J P 0 9 0 5 T J G RU BBERMA I D 2956 G G E G N A R E D A J P 1 6 0 0 T J G G G G G G w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK 24" 24" 24" 24" SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE D D D D D D D D D D D H C D D D DH D D D D C H DC DC O U T A R I I O N U T A A R R I I I N A R I 24x54 610x1372 24x60 610x1524 MAX Q MAX Q Q M A X Q M A X 6 1 0 x 9 1 4 6 1 0 x 9 1 4 2 4 x 3 6 2 4 x 3 6 18x60 457x1524 Q M A X MAX Q 6 1 0 x 1 3 7 2 2 4 x 5 4 Q M A X C H 6 1 0 x 1 5 2 4 2 4 x 6 0 Q M A X 2 1 x 3 0 5 3 3 x 7 6 2 18x48 457x1219 MAX Q 18x48 457x1219 MAX Q 18x48 457x1219 MAX Q DN 6TH STREET Ramp Down to Accessible Parking in Garage Below T E T E E E R R T S T O S D A O R O D L O C A R O L O C Accessibility Diagram 2 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025SCALE: 1" = 50' 0' 25' 50'HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025ONEWAYONEWAYONEWAYTRANSIT PRIORITY LANE T E E R T S A C A V A L 6 2 DN D D O W C O W C W C I I W C 1424 H C 2436 C H D C H H C 1 4 5 4 1 4 5 4 C C D 0 6 4 2 P K H T 2 4 G L A S S W A S H E R P E R LI C K D H D 1 CF SPACE FOR PUMP REQUIRED. REFER TO INSTALLATION MANUAL. C H CWO CWI C D D C D D D D 3 w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK w/GLASS DOOR HB24WS ADA WINE RESERVE PERLICK 24" 24" 24" 24" SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE SHELVES. ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE G G G G E G N A R E D A J P 1 6 0 0 T J DGC G G G G G G D C G D C E G N A R E D A J P 0 9 0 5 T J G RU BBERMA I D 2956 G G E G N A R E D A J P 1 6 0 0 T J G G G G G G C H DC DC O U T A R I I O N U T A A R R I I I N A R I 24x54 610x1372 24x60 610x1524 MAX Q MAX Q Q M A X Q M A X 6 1 0 x 9 1 4 6 1 0 x 9 1 4 2 4 x 3 6 2 4 x 3 6 18x60 457x1524 Q M A X MAX Q 6 1 0 x 1 3 7 2 2 4 x 5 4 Q M A X C H 6 1 0 x 1 5 2 4 2 4 x 6 0 Q M A X 2 1 x 3 0 5 3 3 x 7 6 2 18x48 457x1219 MAX Q MAX Q 18x48 457x1219 18x48 457x1219 MAX Q 1 D D D D D D D D D D D H C D D D DH D D D D 2 DN 5 4 7 6 3 4 KEYNOTES: 1. PROPOSED PATIO 2. PROPOSED ACCESSIBLE ENTRIES 3. PROPOSED AWNINGS 4. PROPOSED AWNINGS AT L2 WINDOWS 5. PROPOSED FREESTANDING SIGN 6. PROPOSED SIGNAGE ON BUILDING 7. PROPOSED REPLACEMENT OF NON-HISTORIC HANDRAILS (ADDED IN 2020) T E E R T S O D A R O L O C Exterior Modifications Site Plan 3 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025SCALE: 1" = 32' 0' 16' 32'HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025 KEYNOTES: 1. 1-HOUR RATED PARTITION BETWEEN EXISTING WINDOWS AND KITCHEN EQUIPMENT TO PROVIDE REQUIRED KITCHEN HOOD CLEARANCES PER UNIFORM MECHANICAL CODE 507.4. BACK SIDE OF RATED WALL ASSEMBLY TO BE PRIMED AND PAINTED. NEW TEXTURED ARCHITECTURAL GLASS AT EXISTING WINDOWS. CURRENT GLAZING IS NON-HISTORIC (CHANGED IN 2020). SEE PAGE 5 FOR SECTION VIEW. 2. NEW TEXTURED ARCHITECTURAL GLASS AT EXISTING WINDOWS. CURRENT GLAZING IS NON-HISTORIC (CHANGED IN 2020). 2 1 02 A302 01 A401 D DN DN D D D D D D C R I 3 R A T S O W C O W C W C I I W C 1424 1424 1424 H C 2436 2436 2436 D D C H C H H C 4 1 5 1 4 4 4 5 4 4 8 1 4 1 1 4 5 4 4 4 5 8 4 1 C C D H B 2 4 F S A D A F R E E Z E R P E R LI C K 2 4 " S H E L V E S . I N A C O R N E R T O A L L O W A C C E S S T O F U L L E X T E N S I O N C A B I N E T W H E N L O C A T I N G U N I T F R O M H I N G E D S I D E O F I R E Q U R E S 1 - 3 / 8 " C L E A R A N C E 0 6 4 2 " 2 1 / " 1 " 2 1 / " 1 PATIO 102' - 0" PLATFORM STAGE DN 102' - 0" PDR PDR 102' - 0" 01 A554 DN LINE OF NEW MEZZANINE EXTENSION ABOVE SHOWN DASHED w/GLASS DOOR w/GLASS DOOR HB24WS HB24WS ADA WINE RESERVE ADA WINE RESERVE PERLICK PERLICK w/GLASS DOOR w/GLASS DOOR HB24WS HB24WS ADA WINE RESERVE ADA WINE RESERVE PERLICK PERLICK w/GLASS DOOR w/GLASS DOOR HB24WS HB24WS ADA WINE RESERVE ADA WINE RESERVE PERLICK PERLICK w/GLASS DOOR w/GLASS DOOR HB24WS HB24WS ADA WINE RESERVE ADA WINE RESERVE PERLICK PERLICK 24" 24" 24" 24" 24" 24" 24" 24" SHELVES. SHELVES. ACCESS TO FULL EXTENSION ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE REQUIRES 1-3/8" CLEARANCE SHELVES. SHELVES. ACCESS TO FULL EXTENSION ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE REQUIRES 1-3/8" CLEARANCE SHELVES. SHELVES. ACCESS TO FULL EXTENSION ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE REQUIRES 1-3/8" CLEARANCE SHELVES. SHELVES. ACCESS TO FULL EXTENSION ACCESS TO FULL EXTENSION IN A CORNER TO ALLOW IN A CORNER TO ALLOW CABINET WHEN LOCATING UNIT CABINET WHEN LOCATING UNIT FROM HINGED SIDE OF FROM HINGED SIDE OF REQUIRES 1-3/8" CLEARANCE REQUIRES 1-3/8" CLEARANCE STAIR 4 UP 1860 1860 1860 1860 1860 1860 1848 1848 102' - 0" D D D D D D D D D D D D D D D D BAR BAR D D D D D D D H C D D D D D D D DH D D D D D D D D 02 A561 I 2 R A T S DN ELEV. 2 ELEV.1 102' - 0" DN 1854 1854 1854 1854 EXISTING STAIR A E G N A R E G N A R E D A J E D A J P 1 6 0 0 T J P 1 6 0 0 T J 7E G G G G 02 A553 24x54 24x54 2454 610x1372 610x1372 24x60 24x54 2454 610x1524 610x1372 MAX MAX Q Q MAX MAX Q Q G G G G G G G G G G G C H DC DC D 02 A562 AIR OUT I A R O U T AIR IN I I A A R R I O N U T I N I A R Q Q M A X M A X 6 4 6 1 2 1 5 3 8 4 0 7 8 x x x x 3 3 9 1 9 6 6 1 1 4 4 Q Q M A X M A X Q M Q A X M A X C H 0 2 2 6 4 4 4 x x 6 6 2 0 0 6 6 1 1 0 0 x x 1 1 5 5 2 2 4 4 Q M Q A X M A X 6 4 6 1 2 1 5 3 8 4 0 7 8 x x x x 3 3 9 9 1 6 6 1 1 4 4 18x60 18x60 1860 457x1524 457x1524 MAX MAX Q Q 0 3 1 2 2 1 x 3 0 2 1 x 3 0 5 3 3 x 7 6 2 5 3 3 x 7 6 2 Q M Q A X M A X 4 2 2 5 4 4 4 x x 5 5 2 4 4 6 6 1 1 0 0 x x 1 1 3 3 7 7 2 2 DN " 8 / 7 1 1 - ' 2 02 A552 01 A551A DN DN STAIR 1 18x48 18x48 1848 457x1219 457x1219 MAX MAX Q Q MAX MAX Q Q 18x48 18x48 1848 457x1219 457x1219 MAX MAX Q Q 18x48 18x48 1848 457x1219 457x1219 EXISTING STAIR B G L A S S W A S H E R G L A S S W A S H E R P K H T 2 4 P K H T 2 4 4E D DP H P E R L I C K E R L I C K D D J 4 # D O O H 1 CF SPACE FOR PUMP REQUIRED. REFER TO INSTALLATION MANUAL. H CWO C CWI C D D C D D D D D D D D D BOH / KITCHEN BOH / KITCHEN G G G G G G G G G G G G E G N A R E G N A R P 1 6 0 0 T J P 1 6 0 0 T J E D A J E D A J GC G D D 6E G G G G G G G G G G 6E G G 5E G G E G N A R E D A J P 0 9 0 5 T J 5E 6 # D O O H 5 # D O O H D D C D C D RUBBER MAID 2956 RUBBER MAID 2956 vfy conv oven spec 7E 7 # D O O H 2 2 A801 02 A301 01 A401 1' - 0" RR RR 02 A551B 01 A301 Floor Plan - L1 4 HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025SCALE: 1" = 16' 0' 8' 16' . I N M ” 8 1 . 4 7 0 5 C M U R E P KITCHEN HOOD 1 2 KEYNOTES: 1. 1-HOUR RATED PARTITION BETWEEN EXISTING WINDOWS AND KITCHEN EQUIPMENT TO PROVIDE REQUIRED KITCHEN HOOD CLEARANCES PER UNIFORM MECHANICAL CODE 507.4. BACK SIDE OF RATED WALL ASSEMBLY TO BE PRIMED AND PAINTED. PARTITION STOPS 18” ABOVE HOOD (IN ALIGNMENT WITH EXISTING WINDOW MULLION). 2. NEW TEXTURED ARCHITECTURAL GLASS AT EXISTING WINDOWS. CURRENT GLAZING IS NON-HISTORIC (CHANGED IN 2020). DESIGN INTENT FOR GLASS: 11 MEZ Section at Kitchen Windows 1 L1 - G 5 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025 2 1 1 1 S BR F KEYNOTES: 1. PROPOSED MECHANICAL EQUIPMENT (+/- 108” TALL) TO BE ISOLATED TO THIS PORTION OF ROOF BASED ON LANDLORD REQUIREMENTS. 2. PROPOSED EQUIPMENT SCREEN. SEE PAGE 7 FOR SECTION VIEW. DESIGN GOALS FOR PROPOSED EQUIPMENT SCREEN: A. 12” OFFSET FROM PARAPET TO RELATE TO BUILDING GEOMETRY B. FINISHED TO MATCH COLOR OF EXISTING BUILDING C. MINIMAL LOW-PROFILE METAL LOUVER SCREEN Roof Plan 6 HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025SCALE: 1" = 16' 0' 8' 16'DESIGN GOALS FOR PROPOSED EQUIPMENT SCREEN: A. 12” OFFSET FROM PARAPET TO RELATE TO BUILDING GEOMETRY B. FINISHED TO MATCH COLOR OF EXISTING BUILDING C. MINIMAL LOW-PROFILE METAL LOUVER SCREEN Section at Equipment Screen 7 KITCHEN 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 20255' - 0"4' - 1 1/4"21' - 8"1' - 0"T.O. EXHAUST9' - 1 3/4"9' - 3"Photo of Installed Screen (color to match existing building) Photos of Screen Sample (color to match existing building) Equipment Screen Specification 8 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Photo of Existing Conditions Perspective Rendering Equipment Screen View - Southwest Corner from across 6th Street 9 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Photo of Existing Conditions Perspective Rendering Equipment Screen View - Northwest Corner from sidewalk along Lavaca Street 10 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025EXTERIOR WEST FACADE — WEST FACADE — Equipment screen (5’-0” above parapet height) Existing uplighting and downlighting to be changed to a warm amber color Awnings with printed logo at windows, inspired by historical awnings. Restore historical awning with printed logo at all windows Installed as a reversible intervention with no permanent impact on historic structure. Restore historical awning with printed logo at all windows Traditional outdoor window drapery with printed logo at the small window Restore historical awning with printed logo at all windows Traditional outdoor window drapery with printed logo at the small window Traditional outdoor window drapery with printed logo at the small window ” 0 - 5 ’ New textured architectural glass at existing windows; current glazing is non-historic (changed in 2020) 1230 CLUB AUSTIN Ex terior Awning / Signage 1230 CLUB AUSTIN Ex terior Awning / Signage AUGUST 22, 2025 AUGUST 22, 2025 West Elevation from across Lavaca Street AUGUST 22, 2025 11 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025West Elevation from across Lavaca Street with existing trees 12 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025West Elevation from across Lavaca Street (photo of existing conditions) 13 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025FRONT FACADE — Awnings with printed logo, inspired by historical awnings (reversible intervention) Equipment screen Freestanding sign Stone base with backlit metal logo signage shown at 10' x 6' Traditional outdoor window drapery with printed logo Flag with printed logo Awnings with printed logo, inspired by historical awnings (reversible intervention) Neutral dome awning with printed logo Same club sign with Nashville Signage at primary entry (reversible intervention) Columns to be uplit and step lights to be added Existing lighting to be changed to a warm amber color Doors and door frames to be painted to match north windows; current color is non-historic (changed in 2020) Non-historic handrails to be replaced (added in 2020) 1230 CLUB AUSTIN Ex terior Awning / Signage AUGUST 22, 2025 South Elevation 14 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Proposed signage Proposed equipment screen shown dashed " 0 - ' 5 Proposed accessible entry - east Proposed accessible entry - west North Elevation Accessible Entries 15 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Level 10' -0"Level 1.517' -10"Roof44' -1"Level 230' -9"10' - 0"5' - 0" FRONT FACADE — Traditional outdoor window drapery with printed logo Neutral dome awning with printed logo Stone base with backlit metal logo signage shown at 10' x 6' Flag with printed logo Same club sign with Nashville 1230 CLUB AUSTIN Ex terior Awning / Signage AUGUST 22, 2025 North Elevation Proposed Patio 16 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025- APPENDIX A 7’-0” SCREEN (as presented to ARC on September 10, 2025) 17 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 20251' - 0" " 0 - ' 7 " 4 / 1 1 - ' 4 " 8 - ' 1 2 KITCHEN DESIGN GOALS FOR PROPOSED EQUIPMENT SCREEN: A. 12” OFFSET FROM PARAPET TO RELATE TO BUILDING GEOMETRY B. FINISHED TO MATCH COLOR OF EXISTING BUILDING C. MINIMAL LOW-PROFILE METAL LOUVER SCREEN APPENDIX A: 7’-0” SCREEN Section at Equipment Screen 18 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025 Photo of Existing Conditions Perspective Rendering APPENDIX A: 7’-0” SCREEN Equipment Screen Southwest Corner 19 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Photo of Existing Conditions Perspective Rendering APPENDIX A: 7’-0” SCREEN Equipment Screen Northwest Corner 20 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025LOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOWEST FACADE — Equipment screen (7’-0” above parapet height) Restore historical awning with printed logo at all windows Existing uplighting and downlighting to be changed to a warm amber color Traditional outdoor window drapery with printed logo at the small window Awnings with printed logo at all arched windows, inspired by historical awnings. Restore historical awning with printed logo at all windows Installed as a reversible intervention with no permanent impact on historic structure. Traditional outdoor window drapery with printed logo at the small window APPENDIX A: 7’-0” SCREEN 1230 CLUB AUSTIN Ex terior Awning / Signage AUGUST 22, 2025 AUGUST 22, 2025 APPENDIX A: 7’-0” SCREEN West Elevation 21 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025LOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOLOGOAPPENDIX A: 7’-0” SCREEN West Elevation (with existing trees) 22 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025LOGOLOGOLOGOLOGO- APPENDIX B SIGNAGE PACKAGE 23 210 W. SIXTH STREET FOR FRC© Nelsen Partners, Inc. 2025HISTORIC EXHIBITS FOR HLCAUSTIN, TX | 25016 | NOVEMBER 7, 2025Presented by: BlackDuck Studio LLC. October, 2025 S300.S2 S300.S1 S300.S1 S300.S1 S300.S1 S300.S1 S300.S2 S100 1 Rendering : North Elevation Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ Ÿ S300.S1+S2 : All installed using Tapons into grout lines (see spec page for details) S100 : Installed using Removable Drive Rivets into column grout lines (see spec page for details) DISCLAIMERS: Ÿ N/A QUANTITY: S100 : 80.5 sqft S300.S1 : 5 sqft. S300.S2 : 2 sqft. Total : 87.5 sqft. Sign Type South Elevation © copyright: BlackDuck Studio LLC. 2021 S200 1 Rendering : North Elevation Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ S200 : All installed using Tapons into grout lines (see spec page for details) DISCLAIMERS: Ÿ N/A QUANTITY: S200 : 41 sqft. Sign Type North Elevation © copyright: BlackDuck Studio LLC. 2021 S300.W S300.W S300.W S300.W S300.W S300.W S300.S2 1 Rendering : West Elevation Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ S300.W : All installed using Tapons into grout lines (see spec page for details) DISCLAIMERS: Ÿ N/A QUANTITY: S300.W : 7 sqft Sign Type West Elevation © copyright: BlackDuck Studio LLC. 2021 . d o . ” 6 7 . 6 3 p a r t s n o i s s e r p m o c 15’ - 10.00” 15’ - 10.00” . d ” 0 0 . 6 3 n m u o c l ” 0 0 . 4 ” 0 0 . 3 3 Top View - South Elevation Entry Sign Scale 1/2”=1’ ” 6 5 . 7 1 ” 6 1 . 3 1 ” 3 7 . 8 NOTES: A) Custom fabricated, internally illuminated, Faux - exposed neon channel letters mounted on custom fabricated wire-way; illuminated using 24v White LEDs (7100k); wire-way mechanically fastened to custom fabricated compression collar; collar fabricated using .25” thick aluminum; collar mechanically fastened to existing column by penetrating grout line ONLY; removable drive rivets are used to mechanically fasten collar to column; .063” thick neoprene barrier installed between collar and column; collar, wire-way, letter cans, all painted using Matthew Acrylic Polyurethane. Note: All LED power supplies are located inside wire- way; client is responsible for providing primary electrical termination to sign location. 3.00” 4.00” 36.76” 4.60” ” 0 0 . 6 ” 0 0 . 5 1 Face View - South Elevation Entry Sign Scale 1/2”=1’ 2 Side View - South Elevation Entry Sign Scale 1/2”=1’ column grout line Removable Drive Rivets installed to horizontal grout line ONLY ~115.45” C ~36.76” d 4.00” custom wire-way made from 4.00” x 6.00” aluminum tubing with .25” thick wall. .25” aluminum brackets welded inside of wire-way; bolted to compression collar. .25” aluminum compression collar; anchored to column using removable Drive Rivets ” 5 7 5 . untouched column .25” thick aluminum compression collar Removable Drive Rivet neoprene layer grout line untouched column 4 Top Section View - Compression Collar and Wire-Way connection details Scale 1:4 4 Top Section View - Compression Collar detail Scale 1:4 6 Section View - South Elevation Entry Sign Scale 1:2 www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ Ÿ Ÿ full inspection required prior to fabrication to ensure accuracy. Removable Drive Rivets only used on this location; more decorative finish over Tapcons; helps ensure building’s overall finished appearance. Compression collar, wire-way, and hardware all painted to best match column’s existing color. DISCLAIMERS: Ÿ N/A QUANTITY: 1 total Sign Type S100 South Elevation : Building Sign Illuminated © copyright: BlackDuck Studio LLC. 2021 1 Face View - South Elevation Entry Sign - Rendering : for visual representation only; actual scale and appearance may vary Scale NTS 2 Face View - South Elevation Entry Sign - Hardware details Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: Date: February 2024 NOTES: DISCLAIMERS: Ÿ N/A QUANTITY: 1 total Sign Type S100 South Elevation : Building Sign Illuminated © copyright: BlackDuck Studio LLC. 2021 Compression Collar location; all mechanical fasteners located along horizontal grout line as shown www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: Date: February 2024 NOTES: DISCLAIMERS: Ÿ N/A QUANTITY: 1 total Sign Type S100 South Elevation : Building Sign Illuminated © copyright: BlackDuck Studio LLC. 2021 1 Face View - South Elevation Entry Sign - Column Grout Location Scale NTS EQ .30” ” 0 5 . 5 - ’ 3 ” 0 5 . 9 1 ” 0 8 . 7 1 Face View Scale 1:20 11’ - 5.75” 10’ - 11.75” ” 0 5 . 1 EQ 3.00” .75” 3.00” .75” NOTES: A) Custom fabricated, internally illuminated wall sign with push through acrylic; fabricated using Aluminum; painted using Matthews Acrylic Polyurthane to match client’s specications; all installed to existing exterior wall using stainless steel tapcon concrete anchors. Note: All LED power supplies are located inside sign cabinet; client is responsible for providing primary electrical termination to sign location. Electrical Disconnect Switch Primary Electrical Disconnect 2 Side View Scale 1:20 24v LED(s) (TBD) Sign back Sign face 3 Fabrication Method - Isometric View Scale NTS 4 Rendering: For visual representation only; actual scale and appearance may vary Scale 1’=20’ 5 Rendering: For visual representation only; actual scale and appearance may vary Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ Sign installed using stainless steel concrete anchors Ÿ All anchors are passed through VERTICAL GROUT ONLY Ÿ Neoprene strips applied to back side and used as a barrier spacer. Ÿ Grout and hole locations are an approximate; a full inspection and paper pattern is required prior to installation to ensure perfect fit over grout. DISCLAIMERS: Ÿ N/A QUANTITY: 1 total Sign Type S200 North Elevation : Building Sign Illuminated © copyright: BlackDuck Studio LLC. 2021 sign installed to south side facade using stainless steel, concrete tapcon fasteners; all fasteners are set in vertical grout lines only; estimated penetration locations shown in PINK www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: DISCLAIMERS: Ÿ N/A QUANTITY: 1 total Sign Type S200 North Elevation : Building Sign Illuminated © copyright: BlackDuck Studio LLC. 2021 1 Grout Installation Location(s) : Rendering: For visual representation only; actual scale and appearance may vary Scale NTS 1.25” .38” 2.00” .76” .98” .25” 2.00” .76” .98” .25” ” 0 5 . 1 ” 5 7 . ” 5 7 . ” 0 5 . 1 ” 5 7 . ” 5 7 . ” 5 2 . 1 ” 5 7 . ” 5 7 . D B T EQ EQ 1 Face View - Wall Bracket Scale 1:1 .25” 2 Side View - Wall Bracket Scale 1:1 3 Top View - Wall Bracket Scale 1:1 NOTES: A) Custom fabricated, aluminum framed, exterior canvas awning(s); installed to existing exterior wall using custom L bracket(s); brackets painted using Matthews Acrylic Polyurethane to best match building color; all brackets installed using tapcon concrete anchors and ONLY penetrated through grout lines; awnings mechanically fastened to L brackets. Wall stone (untouched) Concrete Tapcon Neoprene Wall Bracket 10 Face View - Wall Bracket Attachment Detail Scale NTS Neoprene Grout Line Concrete Tapcon Awning Canvas Awning Frame 9 Side View - Wall Bracket Attachment Detail Scale NTS ~76.00” 13.42” ” 0 0 4 5 . ” 0 0 6 3 . ” 0 0 . 8 1 ” 0 0 6 3 . ” 0 0 . 8 1 ” 0 0 . 2 1 36.00” 8 Rendering : West Elevation Scale 1’=20’ All brackets are mechanically fastened to underside of window arc using Tapcon concrete anchors; all anchors located on GROUT LINES ONLY. EQ EQ 4 Face View - Awning : West Entry Door Scale 1/2”=1’ 5 Side View - Awning : West Entry Door Scale 1/2”=1’ 8 Penetration Locations Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ measurements are approximates; site inspection is required to ensure perfect fit prior to fabrication. Ÿ Awning material : Sunbrella Shade - Dubonnet Tweed DISCLAIMERS: Ÿ N/A QUANTITY: 6 total Sign Type S300.W Awnings : West Elevation Entry Level Windows © copyright: BlackDuck Studio LLC. 2021 1.25” .38” 2.00” .76” .98” .25” ” 0 5 . 1 ” 5 7 . ” 5 7 . ” 0 5 . 1 ” 5 7 . ” 5 7 . 2.00” .76” .98” .25” D B T ” 5 2 . 1 ” 5 7 . ” 5 7 . EQ EQ 1 Face View - Wall Bracket Scale 1:1 .25” 2 Side View - Wall Bracket Scale 1:1 3 Top View - Wall Bracket Scale 1:1 NOTES: A) Custom fabricated, aluminum framed, exterior canvas awning(s); installed to existing exterior wall using custom L bracket(s); brackets painted using Matthews Acrylic Polyurethane to best match building color; all brackets installed using tapcon concrete anchors and ONLY penetrated through grout lines; awnings mechanically fastened to L brackets. Wall stone (untouched) Concrete Tapcon Neoprene Wall Bracket 10 Face View - Wall Bracket Attachment Detail Scale NTS Neoprene Grout Line Concrete Tapcon Awning Canvas Awning Frame 8 Rendering : South Elevation Scale 1’=20’ ~76.00” 13.42” 36.00” 9 Side View - Wall Bracket Attachment Detail Scale NTS ” 0 0 4 5 . ” 0 0 6 3 . ” 0 0 . 8 1 ” 0 0 6 3 . ” 0 0 . 8 1 ” 0 0 . 2 1 EQ EQ 4 Face View - Awning : South Window(s) Scale 1/2”=1’ 5 Side View - Awning : South Window(s) Scale 1/2”=1’ 6 Installation Location(s) - Awning : South Entry Window(s) Scale NTS brackets mechanically fastened to GROUT LINE ONLY; brackets in areas as shown. www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ measurements are approximates; site inspection is required to ensure perfect fit prior to fabrication. Ÿ Awning material : Sunbrella Shade - Dubonnet Tweed DISCLAIMERS: Ÿ N/A QUANTITY: 5 total Sign Type S300.S1 Awnings : South Elevation Entry Level Windows © copyright: BlackDuck Studio LLC. 2021 1.25” .38” 2.00” .76” .98” .25” ” 0 5 . 1 ” 5 7 . ” 5 7 . ” 0 5 . 1 ” 5 7 . ” 5 7 . 2.00” .76” .98” .25” D B T ” 5 2 . 1 ” 5 7 . ” 5 7 . EQ EQ 1 Face View - Wall Bracket Scale 1:1 .25” 2 Side View - Wall Bracket Scale 1:1 3 Top View - Wall Bracket Scale 1:1 NOTES: A) Custom fabricated, aluminum framed, exterior canvas awning(s); installed to existing exterior wall using custom L bracket(s); brackets painted using Matthews Acrylic Polyurethane to best match building color; all brackets installed using tapcon concrete anchors and ONLY penetrated through grout lines; awnings mechanically fastened to L brackets. brackets mechanically fastened to GROUT LINE ONLY; brackets in areas as shown. 7 Rendering : South Elevation Scale 1’=20’ 8 Installation Location(s) - Awning : South Entry Window(s) Scale NTS ~75.00” EQ 13.41” EQ 24.00” ” 0 0 2 1 . ” 0 0 8 1 . ” 0 0 0 3 . Q E ” 0 0 2 1 . Q E . ” 0 0 0 ”3 0 0 8 1 . 4 Face View - Awning : West Entry Door Scale 1/2”=1’ 5 Side View - Awning : South Upper Floor Window(s) Scale 1/2”=1’ Neoprene Grout Line Concrete Tapcon Awning Canvas Awning Frame 9 Side View - Wall Bracket Attachment Detail Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ measurements are approximates; site inspection is required to ensure perfect fit prior to fabrication. Ÿ Awning material : Sunbrella Shade - Dubonnet Tweed DISCLAIMERS: Ÿ N/A QUANTITY: 2 total Sign Type S300.S2 Awnings : South Elevation Upper Windows © copyright: BlackDuck Studio LLC. 2021 1 Rendering : South Elevation - S300.S1 + S300.S2 Scale NTS 2 Awning Fabric Detail Scale NTS 3 Concrete Tapcon Details Scale NTS www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ N/A DISCLAIMERS: Ÿ N/A QUANTITY: N/A Sign Type S300.S1 + S.2 Awnings : South Elevation © copyright: BlackDuck Studio LLC. 2021 50.00” ” 1 8 . 3 2 ” 0 0 . 0 5 1 Face View - Freestanding Sign Scale 1/2”=1’ 4 Rendering : South Elevation Scale NTS 4 Rendering : South Elevation Scale NTS NOTES: A) www.blackduckaustin.com HUB VID #: 1833659719200 e: info@blackduckaustin.com p: 512.387.4021 Client: Fox Restaurant Concepts 4455 E. Camelback Rd, Suite B100 Phoenix, AZ 85018 Marji Aron, Senior VP of Dev. 480.588.9713 maron@foxrc.com Project: the Twelve Thirty club Date: October 2025 NOTES: Ÿ N/A DISCLAIMERS: Ÿ All footings and structural details are generic and not actual. QUANTITY: 1 ea. Sign Type S400 Free Standing : South Elevation © copyright: BlackDuck Studio LLC. 2021
